FRITZ!Box 7690

Description

FRITZ!Box 7690 – high-speed Wi-Fi with Wi-Fi 7 for the DSL connection

The FRITZ!Box 7690 is the ideal all-in-one solution with high-speed Wi-Fi and Wi-Fi 7 for your DSL connection or on the fibre optic modem (ONT). Now is the time to get the FRITZ!Box 7690 with practical smart home functions for FRITZ!DECT and Zigbee devices and with convenient telephony.

FRITZ!Box 7690 – high-speed Wi-Fi with Wi-Fi 7 for the DSL connection

The FRITZ!Box 7690 is the ideal all-in-one solution with high-speed Wi-Fi and Wi-Fi 7 for your DSL connection or on the fibre optic modem (ONT). Now is the time to get the FRITZ!Box 7690 with practical smart home functions for FRITZ!DECT and Zigbee devices and with convenient telephony.

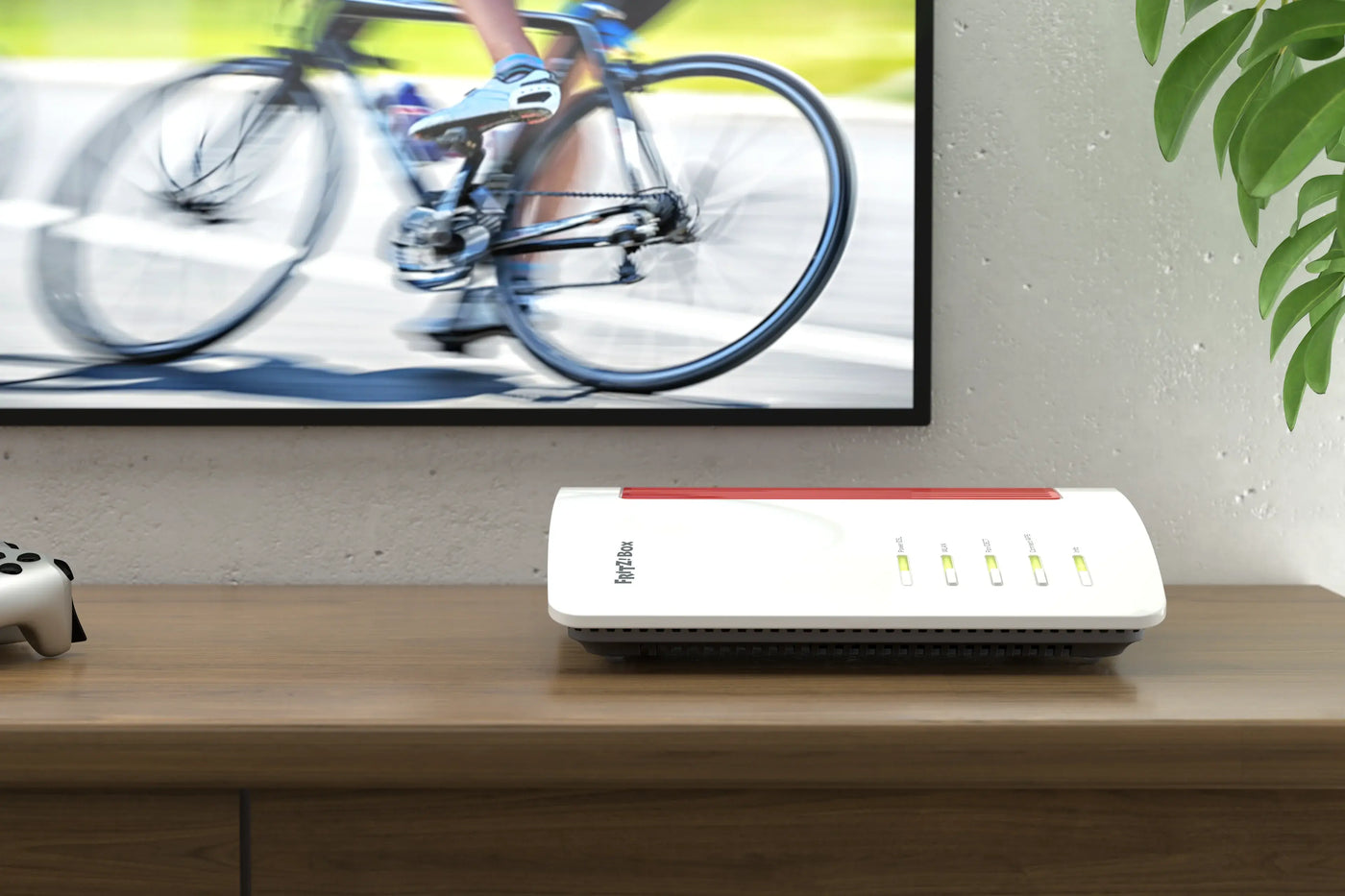

FRITZ!Box 7690 – perfect for DSL connections up to 300 Mbit/s

Get the highest speed out of your DSL connection – with the FRITZ!Box 7690. The FRITZ!Box is optimized for DSL connections up to 300 Mbit/s. Connect, configure in a few steps, and off you go: FRITZ! makes switching routers a delight.Even on the cable or fibre optic modem (ONT), the FRITZ!Box 7690 with the 2.5-gigabit WAN socket feels right at home.With the FRITZ!Box 7690 you always have the best connection.

Strong Wi-Fi topped off with Mesh

High speed and reliability: The FRITZ!Box 7690 brings high-speed Wi-Fi with Wi-Fi 7 to your home. With up to 7.1 Gbit/s your Wi-Fi network is ready for fast downloads, streaming and gaming. The FRITZ!Box 7690 also relies on intelligent Mesh to connect your devices in the best way possible: In the Mesh the FRITZ!Box steers your devices into the best Wi-Fi band, or for optimized connections, to other FRITZ! devices in the Mesh.Wi-Fi 7 is especially robust against interference, and can use multiple Wi-Fi bands for data transmission. The FRITZ!Box supports established Wi-Fi standards such as Wi-Fi 6, Wi-Fi AC and N.Boost your Wi-Fi to a new level – with the FRITZ!Box 7690!

Intelligent automations: The smart home now supports Zigbee

The FRITZ!Box 7690 is the perfect hub for your smart home with functions for electricity, heating, lighting and more. Add intelligent automations to your home with schedules and powerful if-then routines. Operate your smart home devices conveniently with the FRITZ!App Smart Home, smart home buttons, the FRITZ!Fon, or the FRITZ!Box user interface.The FRITZ!Box supports smart home products via DECT and, with Zigbee, many smart home devices from other manufacturers.The intelligent FRITZ! Smart Home is a valuable addition to your home!

Make better calls with FRITZ!

Discover maximum telephony enjoyment with the FRITZ!Box 7690 – with two analogue and with IP or DECT phones: The phone system of the FRITZ!Box holds the connection and helps you organize your daily routine, for instance, with the integrated answering machine. Set up online contacts from Google, Apple, and other providers in the FRITZ!Box – to keep you contacts synced with your smartphone.Perfect your telephony experience – with the FRITZ!Box 7690!

Automatic updates, support and a 5-year warranty: FRITZ! has got it

Your FRITZ!Box receives regular automatic updates with new functions and improved security. FRITZ! means something special: The FRITZ!Box 7690 comes with a 5-year warranty and long product maintenance.

Technical specifications

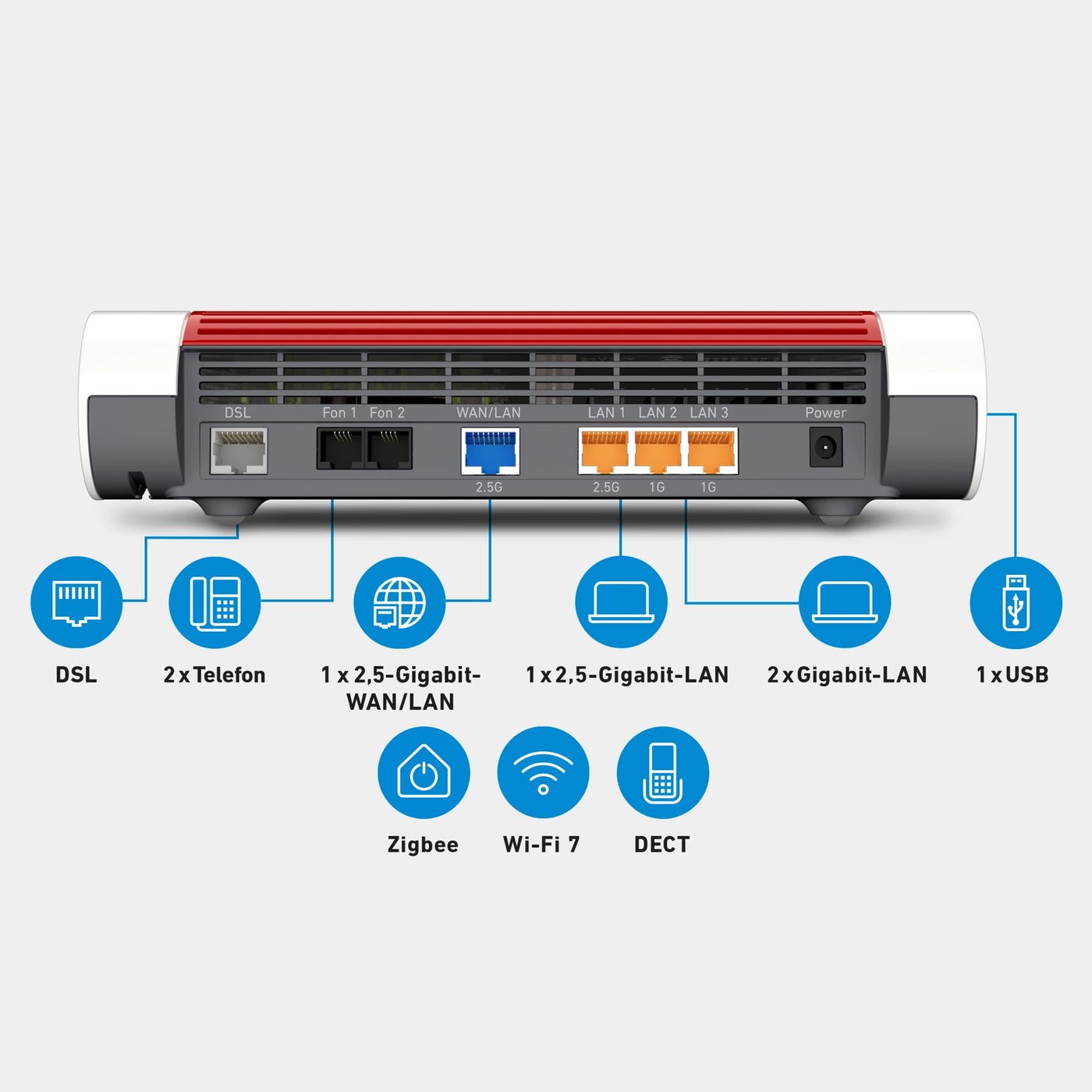

Connections

• 1 x (V)DSL up to 300 Mbit/s and ADSL2+
• 1 x 2.5-gigabit WAN/LAN
• 1 x 2.5-gigabit LAN
• 2 x gigabit LAN
• Wi-Fi 7
• DECT base station for cordless phones and smart home
• Zigbee base station for smart home
• 2 x connections (2 x RJ11, 1 x (optional) TAE) for analogue phone, answering machine or fax
• 1 x USB 2.0 port for storage media and printers

DSL / Internet

• Integrated modem for all (V)DSL connections up to 300 Mbit/s (including supervectoring) and ADSL2+
• Router operation via WAN even with cable or fibre optic modem (ONT)
• Fallback protection via USB dongle
• MyFRITZ! – secure access to your own FRITZ!Box from anywhere
• VPN (WireGuard / IPSec)
• Firewall / NAT with port sharing
• Wake on LAN
• Parental controls (time budget, youth protection filter, device block)

Wi-Fi

• up to 7.1 Gbit/s via Wi-Fi 7
• 5 GHz: up to 5.7 Gbit/s 2.4 GHz up to 1.3 Gbit/s
• 4 x 4 MIMO
• Mesh Wi-Fi
• Compatible with the IEEE 802.11a/g/n/ac/ax/be Wi-Fi standards
• Wi-Fi network encryption with WPA3/WPA2
• Easy connection at the touch of a button (WPS)
• Wi-Fi guest access / hotspot with captive portal
• Wi-Fi eco mode for optimum performance at minimum power consumption
• button
• FRITZ!Fon
• FRITZ!App

Smart Home / Media

• Smart home features for energy, heating, lighting, and more
• Supports smart home devices in accordance with the DECT ULE standard
• Zigbee compatibility list
• Automation in the smart home with schedules, scenes, and routines with if-then combinations
• FRITZ!Fon
• FRITZ!DECT-Taster
• FRITZ!App Smart Home
• FRITZ!NAS: Central storage for all data in the home network
• Media server for music, photos, and videos in the home network (DLNA/UPnP AV)
• Ideal for IPTV and streaming music and videos

Telefony

• Phone system with DECT base station for up to six cordless phones
• FRITZ!Fon
• Sockets for two analogue phones, answering machine or fax
• Registration of IP phones (LAN/Wi-Fi) SIP-compliant
• Voice transmission encrypted upon delivery
• Supports HD telephony for natural sound
• DECT Eco: Wireless network switches off when DECT phones on standby
• 5 integrated answering machines with option for emailing voice messages
• Local and online phone books (Google, Apple, CardDAV and more) with up to 1000 entries
• Fax function with option for emailing fax message
• Call diversion, internal calls (intercom), three-way conferencing, call transfer, phone number blocks and Do Not Disturb

FRITZ!OS

• Intuitive browser- and app-based user interface
• FRITZ!Apps
• Context-sensitive Online Help
• Push service mails for events in the home network
• Security functions with diagnostic tool, auto-updates, firewall, and filter functions
• Optional energy-saving mode for even more energy efficiency
• Free updates with new functions and optimizations

Device Properties

• Dimensions (W x H x D): 254 x 63 x 191 mm
• Can be wall mounted
• Average power consumption: 12 – 13 W
• Information on data usage

Warranty

• 5-year manufacturer’s warranty for end customers, as per the warranty conditions

Article Number

• 20003057
